Optical Properties and Thermal Stability of a Cubic Sulfate Rb2Ca2(SO4)3

ZHONG Xiao-Yu, WU En-Qiang, YANG Sheng-Dong, WANG Hao-Hang, LIN Xiao-Xin and SHEN Yao-Guo*

Chin. J. Struct. Chem. 2021, 40, 949-954  DOI: 10.14102/j.cnki.0254-5861.2011-3047

July 15, 2021

crystal structure, nonlinear optics, solid-state reaction, sulfate

ABSTRACT

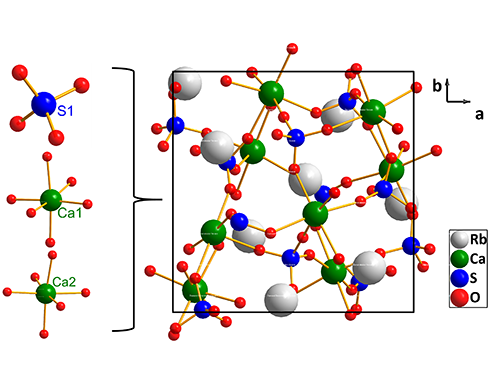

In this paper, a non-centrosymmetric compound of Rb2Ca2(SO4)3 has been synthesized by a high temperature solid-state reaction and high temperature melting method. Single-crystal X-ray diffraction analysis shows that Rb2Ca2(SO4)3 crystallizes in the cubic space group of P213, and its cell parameters are a = b = c = 10.5569(6) Å, Z = 4 and V = 1176.55(12) Å3, respectively. In the crystal structure, SO4 tetrahedra and CaO6 octahedra are connected with each other by a corner-sharing mode to construct the three-dimensional framework of Rb2Ca2(SO4)3. Optical measurements show that the title compound has a short ultraviolet absorption edge and a moderate second-harmonic generation response. The optical origin is illustrated by the electron band structure calculation. In addition, thermal stability is also studied by virtue of differential thermal/thermogravimetric analysis and powder XRD technique.
