Solvothermal Synthesis, Crystal Structure
and Characterization of a New Binuclear Nickel(II) Complexwith 2-(4-Methylbenzoyl)benzoic Acid
LI Wei*, LI Chang-Hong*, LI Yu-Lin and KUANG Yun-Fei
Chin.
J. Struct. Chem. 2021, 40, 878-884 DOI: 10.14102/j.cnki.0254-5861.2011-3070
July 15, 2021
binuclear
nickel(II) complex, spectrum
analysis, thermal stability, magnetic property
ABSTRACT
A new binuclear nickel(II) complex [Ni2(MBBA)2(HPT)2(H2O)2]·2H2O (1) was synthesized with nickel hydroxide,
2-(4-methylbenzoyl)benzoic
acid (HMBBA) and 3-(pyridin-2-yl)-1H-1,2,4-triazole (HPT). It crystallizes in the monoclinic space group P21/n with a = 14.5902(13), b = 8.8191(6), c = 17.6120(14)

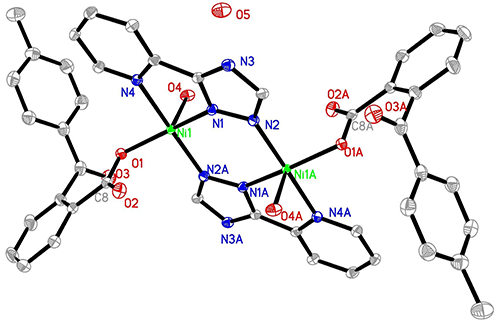

Å, β= 110.830(9)º, V = 2118.0(3) Å3, Mr= 958.26, Dc = 1.503 g/cm3, Z = 2, μ(MoKa) = 0.959, F(000) = 992, the final GOOF = 1.001, R= 0.0353 and wR= 0.09864. Each central Ni(II) ion is coordinated by two oxygen and three nitrogen atoms, forming a distorted square pyramidal geometry. The XRD, TG, spectrum analysis and magnetic properties of 1 were studied.
