Synthesis and Characterization of Organoboryl Germanium(II) Oxides Containing Ge–O–B and Ge–O–B–O–Ge Cores

ZHANG De-Xiang, LI Yao, PENG Lan-Xin, LI Hai-Pu and YANG Ying*

Chin. J. Struct. Chem. 2021, 40, 811-820  DOI: 10.14102/j.cnki.0254-5861.2011-3042

June 15, 2021

organic boronic acid, germylene, synthesis, crystal structure

ABSTRACT

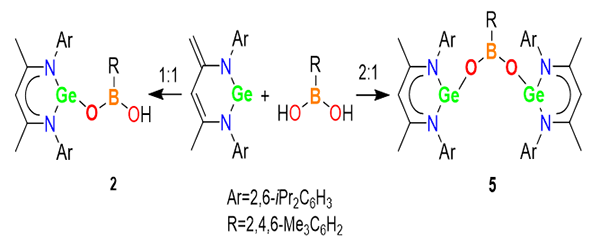

Organoboryl germanium(II) oxides were synthesized from the 1,4-addition reaction of L′Ge (L′ = HC[C(CH2)N(Ar)]C(Me)N(Ar), Ar = 2,6-iPr2C6H3) with selected monosubstituted arylboronic acids RB(OH)2 (R = 2,6-Me2C6H3, 2,4,6-Me3C6H2, 1-Naph) at the molar ratios of 1:1 and 2:1. The mononuclear products RB(OH)OGeL (L = CH[C(Me)N(Ar)]2, Ar = 2,6-iPr2C6H3; R = 2,6-Me2C6H3 (1), 2,4,6-Me3C6H(2), 1-Naph (3)) containing the Ge–O–B core were obtained smoothly through the 1:1 reaction. However, the reaction of L′Ge with 2,6-Me2C6H3B(OH)2 in a 2:1 ratio gave only the mononuclear product (1) instead of the expected binuclear one. What’s more, a new borate compound [(2,6-Me2C6H3)4B5O6]-[H:C]+ (4) (:C = C[N(iPr)C(Me)]2) was concomitantly formed when the in situ prepared L′Ge was used as the precursor. In contrast, the use of 2,4,6-Me3C6H2B(OH)2 or 1-NaphB(OH)2 as the organoboryl source in the similar reaction led to the formation and isolation of the binuclear products RB(OGeL)2 (R = 2,4,6-Me3C6H(5), 1-Naph (6)) containing the Ge–O–B–O–Ge core in a straight way. Compounds 16 were determined by single-crystal X-ray diffraction analysis.
