A Novel Fluorinated Metal-Organic Framework for Xenon/Krypton Separation

WU Xiao-Ling, LI Zi-Jian, TANG Fang-Dong, QIAN Nan, CHU Xin-Xin* and LIU Wei*

Chin. J. Struct. Chem. 2021, 40, 85-90  DOI: 10.14102/j.cnki.0254-5861.2011-2776

January 15, 2021

fluorinated MOFs, crystal structure, gas adsorption

ABSTRACT

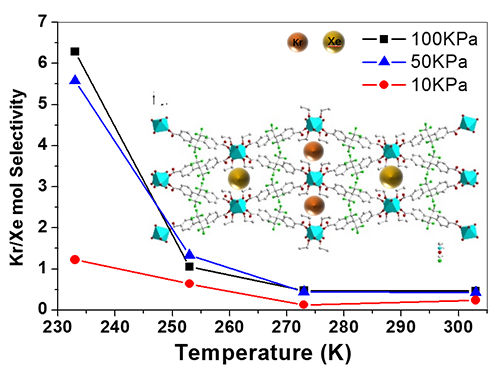

A porous metal-organic framework [C21H20CoF6O7] was synthesized with Co(CH3COO)2·4H2O and CPHFP (2,2΄-bis(4-carboxyphenyl)hexafluoro-propane) under hydrothermal conditions. This FMOF-Co has been characterized by elemental analysis, infrared spectroscopy, thermogravimetric analysis, single-crystal and powder X-ray diffraction. The crystal is of monoclinic space group P21/n with a = 7.8911(2), b = 29.9053(8), c = 10.5811(3) Å, β = 90.193(10)°, V = 2499.70(12) Å3, Z = 4, Mr = 557.3, Dc = 1.481 g·cm–3, F(000) = 1132, μ = 0.768 mm–1, GOOF = 1.035, the final R = 0.0722 and wR = 0.2326 for 6347 observed reflections with I > 2σ(I). The structure of FMOF-Co is constructed form the linkage of Co(II) through CPHFP, forming a 3D net framework. The Kr and Xe uptake values are 0.225 and 0.484 mmol·g–1 at 303 K (100 KPa) with their mol selectivity to be 0.46; while the Kr and Xe uptake values are 0.486 and 0.077 mmol·g–1 at 233 K (100 KPa), with their mol separation being 6.29 at this condition.
